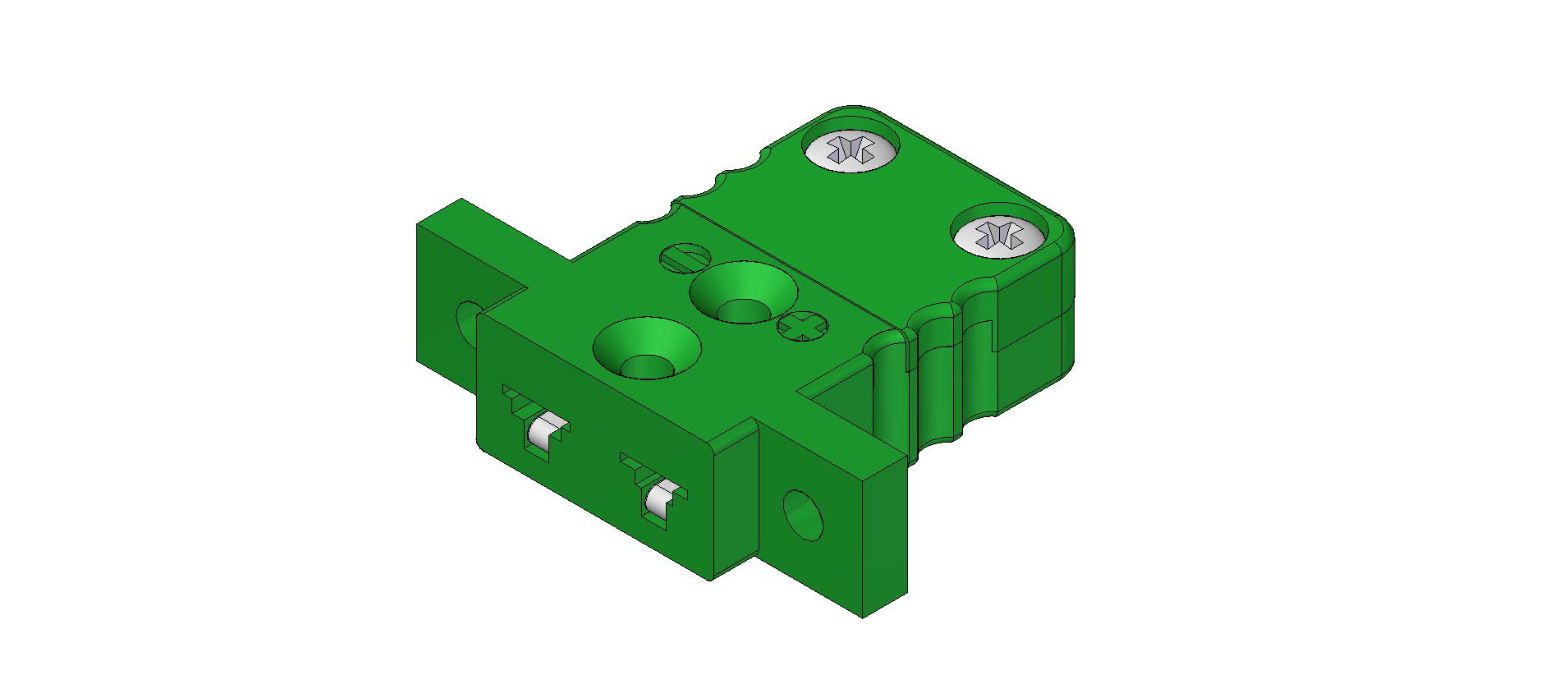

Miniature Panel Insert Flanged Bracket Mount
Our products
Application
Panel insert for thermocouple and RTD circuits.
Mounting by means of stainless steel bracket and two screws. Ideal
panelinsert for instrument cases.
Construction
- Glass filled thermoplastic body with original thermocouple
material pins and springloaded inserts. - Polarized pins ensure proper connection.
- Easy wire connection through sandwich construction.
- Molded barriers prevent short circuit.
- Rugged one body design.
- Polarity indication on body
- Stainless steel bracket and screws for rear panel mounting
Wire size
- Accepts wires up to 0,6 mm.
Temperature rating
- 220 °C Max.
Color Code
- Available in all color code standards. Incl. NFE, BS, JIS, etc.
05.01.03
